J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity
J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity
J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE SGS ISO
Model Number: J5L2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $26,800.00/Sets 1-1 Sets
Packaging Details: standard export wooden case or according to your requirements
Delivery Time: 45days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Bottle Volume(ml): 5000 Ml
Condition: New Blow Moulding Type: Stretch Blow Moulding
Dimension(L*W*H): 2.25*1.6*1.7m Automation: Automatic
Warranty: 1 Year Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel
High Light:

jar bottle stretch machine

,

5L jar bottle blowing stretch machine

,

jar bottle blowing machine With 2cavity

J5L2 Max blowing 5L automatic big mouth wide neck jar bottle stretch machine with 2cavity

specification
Item

QJ5L2




Bottle type specification

Cavity

2

Theory output

1200-1300

Max.volume

5L

Bottle mouth maximum overall DIdiameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm



Power specifications

Light tube quantity

32pcs

Light tube power

1.5KW

Maximum heating power

48KW

All electric machine installation

51KW

Actual consumption

35.7KW



Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3400Ltr/min



Forzen water specification

Work pressure

5-6 kg/cm2

Temperature range

10℃

Consumption

6000kcal/hr

Forzen water flow

50L/min

Machine specification

Size of the machine

4.7x1.6x1.9

Weight of the machine

3ton


Are you in need of a high-quality automatic big mouth wide neck jar bottle stretch blowing machine that can produce up to 5 liters of bottles? Look no further than Max Blowing's 2 cavity blowing machine QJ5L2.
This machine is specifically designed to produce large bottles with ease. Its automatic function ensures that each bottle is consistent in size and quality. The machine's 2 cavity design allows for a maximum output of 1200-1300 bottles per hour.
The wide neck opening of the bottles produced by this machine allows for easy filling and pouring, making this an ideal option for industries such as food and beverage, pharmaceuticals, and personal care products.
Max Blowing's 2 cavity blowing machine is also built to last. It features a durable construction that can withstand daily use without compromising quality or accuracy. Its user-friendly design makes it easy to operate, even for those without prior experience with blow molding equipment.
So why choose Max Blowing's 2 cavity blowing machine? For starters, it offers top-of-the line performance at an affordable price. It's also versatile, able to produce a wide range of bottles of varying sizes and shapes.
In conclusion, if you require an automatic big mouth wide neck jar bottle stretch blowing machine that can produce up to 5 liters of bottles efficiently and consistently, then look no further than Max Blowing's 2 cavity blowing machine. It's a reliable and durable option that can meet the needs of various industries.

Product Description

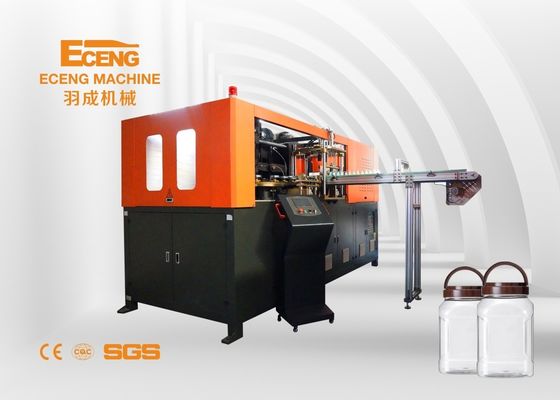

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 0
Detailed Images

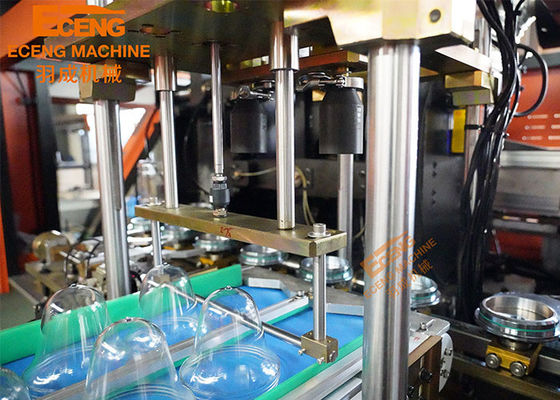

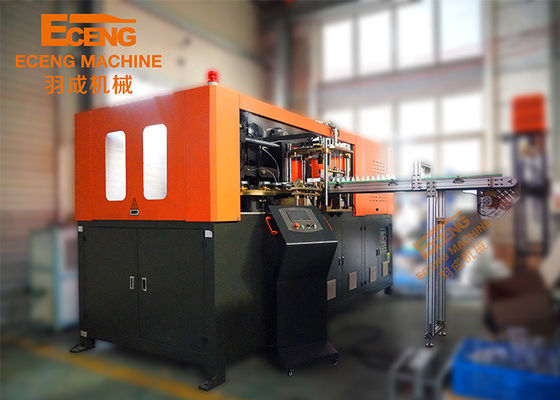

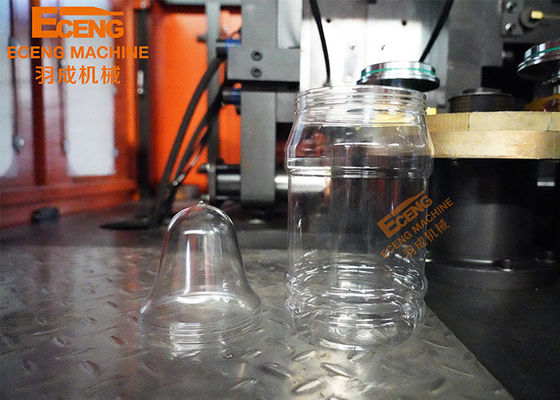

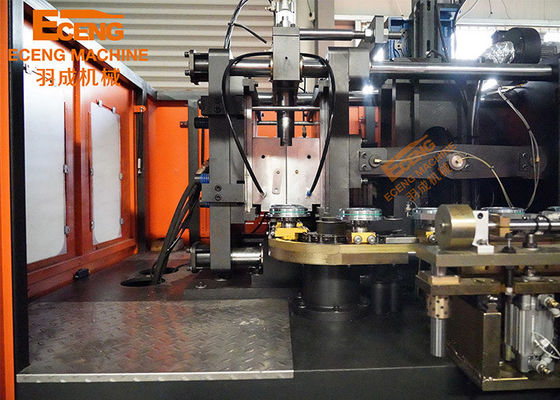

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 1

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 2

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 3
Company Introduction


J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 4
Packing&Shipping
J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 5
J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 6

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 7

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 8

J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 9
Exhibition


J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 10
J5L2 Max Blowing Jar Bottle Stretch Machine 5L Automatic Big Mouth Wide Neck With 2cavity 12
