Blow your bottle, Shape your dream
 |
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE SGS ISO |
| Model Number: | Q6000 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | standard export wooden case or according to your requirements |
| Delivery Time: | 45days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 Set/Sets per Year |
| Plastic Processed: | PET | Max.Bottle Height(mm): | 330 Mm |
|---|---|---|---|
| Neck Diameter(mm): | 28 Mm | Max.Bottle Diameter(mm): | 105 Mm |
| Bottle Volume(ml): | 2000 Ml | Condition: | New |
| Application: | Bottle | Blow Moulding Type: | Stretch Blow Moulding |
| High Light: | Q6000 PET Stretch Blow Moulding Machine,6000BPH PET Stretch Blow Machine,PET Stretch Linear Bottle Blowing Machine |
||

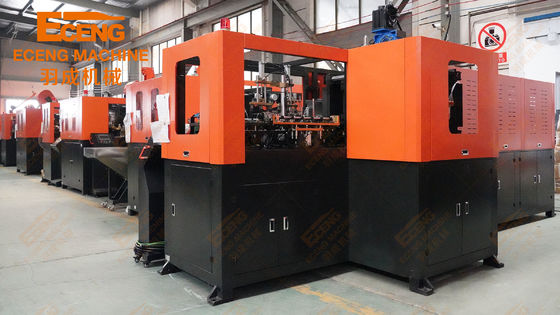

Eceng Q6000 4 Cavity PET Stretch Blow Moulding Machine for 2L Bottle Production Up to 6000BPH
| Model | Q6000 | |
|
Bottle type specification
|
Cavity | 4 |
| Max.volume | 2L | |
| Bottle mouth maximum overall diameter | 28-38mm | |
| Bottle biggest diameter | 105mm | |
| Bottle maximum height | 330mm | |
| Production specification | Theoretical output | 6000BPH |
| Bottle type capacity | 500ML | |
| Bottle type weight | 17g | |
| Bottle type | circular | |
| Power specification | Light tube quantity | 32pcs |
| Light tube power | 1.5KW | |
| Maximum heating power | 48KW | |
| All electric machine installation | 52KW | |
| Actual consumption | 40%--70% | |
|
Air pressure specification
|
Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 3000Ltr/min | |
|
Air pressure specification
|
Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 8000kcal/hr | |
| Forzen water flow | 138L/min | |
|
Machine specification
|
Machine size | 4.2x1.6x1.9 |
| Machine weight | 4.5ton | |
If you're in the business of producing PET bottles, then you know the importance of having a reliable and efficient bottle production system. That's where the Eceng Q6000 4 Cavity PET Stretch Blow Moulding Machine comes in. With capabilities of producing up to 6000 bottles per hour, this machine is a must-have for any production facility.
The Eceng Q6000 is designed to handle the production of 2L bottles specifically. With its 4-cavity system, it can produce 4 bottles at a time, ensuring maximum efficiency. Additionally, its PET stretch blow moulding technology ensures that your bottles will be top-quality, precise and consistent in shape and size.
One of the major advantages of the Eceng Q6000 is its high output rate. The machine is capable of producing up to 6000 bottles per hour, which makes it perfect for high-demand production facilities. This high output rate is achieved through the use of advanced technology, including a servo motor and PLC control system, which helps to eliminate downtime and optimize production efficiency.
Another benefit of the Eceng Q6000 is its user-friendly interface. The machine is easy to operate, with an interface that provides clear and concise instructions. This makes it easy for production workers to operate and maintain the machine, which helps to minimize downtime and increase overall production efficiency.
In terms of its construction, the Eceng Q6000 is built to last. The machine is made from high-quality materials, which means that it can withstand the wear and tear of daily use. This durability ensures that your investment in the machine will be worthwhile, as it will continue to serve your production facility for many years to come.
In conclusion, the Eceng Q6000 4 Cavity PET Stretch Blow Moulding Machine is a must-have for any facility involved in the production of PET bottles. Its high output rate, user-friendly interface, advanced technology, and durability make it a reliable and efficient choice for any production facility looking to increase their production efficiency. So, if you're in the market for a top-quality bottle production system, be sure to check out the Eceng Q6000!
