J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output
J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output
J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output
Product Details:
Place of Origin: CHINA
Brand Name: ECENG
Certification: CE SGS ISO
Payment & Shipping Terms:
Minimum Order Quantity: One
Packaging Details: film/wooden
Delivery Time: 45days
Payment Terms: TT LC western Union
Supply Ability: 10sets Per month
Contact Now
Detailed Product Description
Model Number: J Series Weight: 2.5ton
Capacity: High Color: Customized
Control System: PLC Material: Plastic
Molding Method: Blow Molding
High Light:

J4 jar PET blow molding machine

,

2400BPH PET jar blow molding machine

,

PLC jar blow molding machine

J4 jar PET blow molding machine wide neck bottles with 2200-2400BPH Output.                                                      Specification


Model

J4

Bottle type specification

Cavity

4

Theory output bph

2200-2400

Max.volum

2L

Bottle mouth maximum overall diameter

80mm

Bottle biggest diameter

100mm

Bottle maximum height

330mm

Power specification

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

42KW

Actual consumption

30%--60%

Air pressure specification

Work pressure

7-9kg/cm2

Low-pressure gas consumption

1600L/min

Blow bottle pressure

25-35kg/cm2

Higher -pressure gas consumption

3000Ltr/min

Frozen water specification

Work pressure

7-9 kg/cm2

Temperature range

10℃

Consumption

8000kcal/hr

Forzen water flow

138L/min

Machine specification

Machine size

4.1x1.6x1.9

Machine weight

3.9ton

1.Blowing 0.5-5L PET Jar bottle.
2.Durable PLC micro computer controlling system controls time can be accurate to 0.01 seconds.
3.Special recycling installation for high pressure air reduces the energy consumption.
4.The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even,quick and reliable.
5.Every heating lamp has independent temperature control device to get ideal preform heating effect .
6.Particular pre-heater design makes preform close while heating.Change space shorten heating tunnel and reduce energy consumption according to the bottle size while blowing .
7.Simple installation and starting.

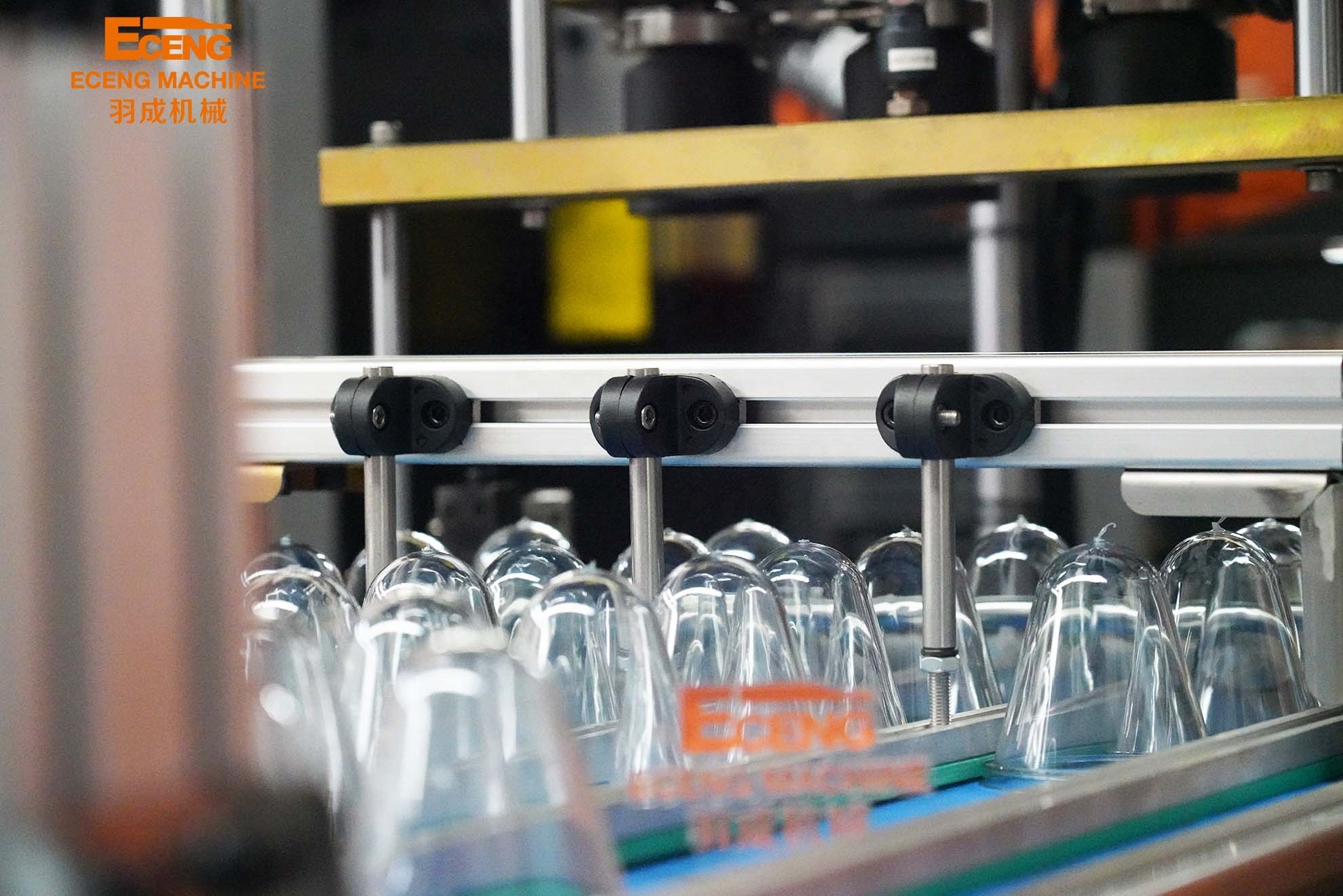

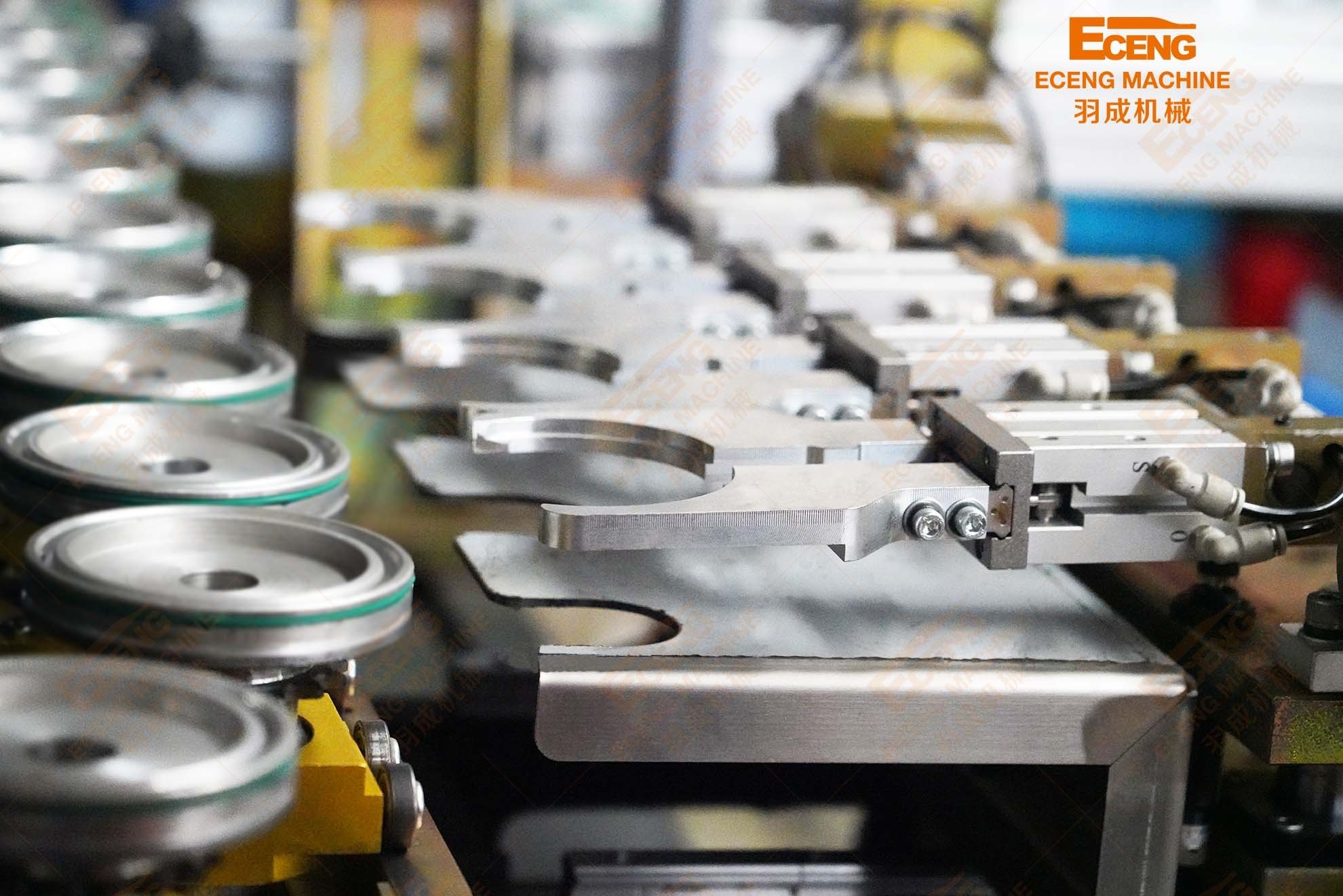

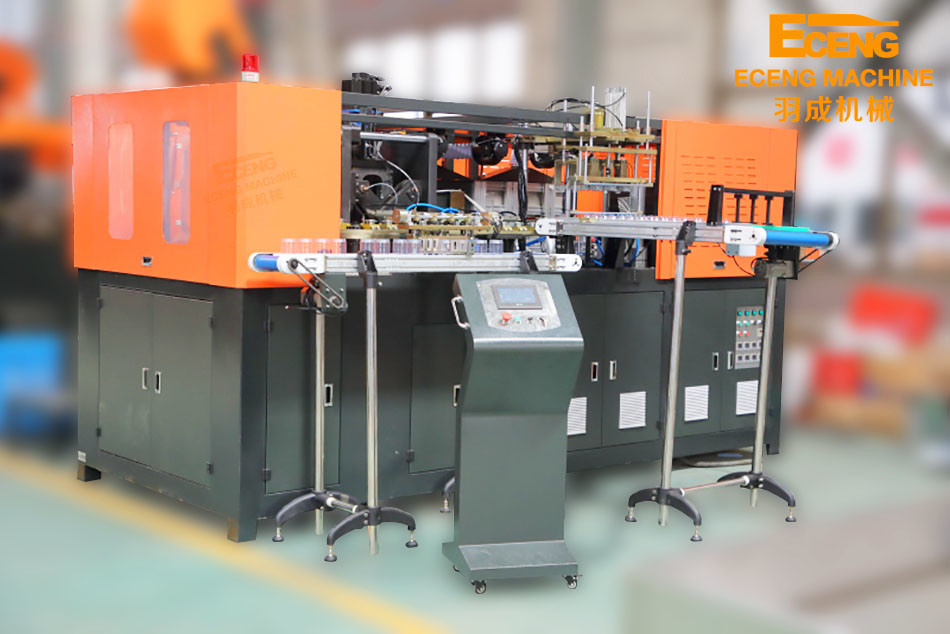

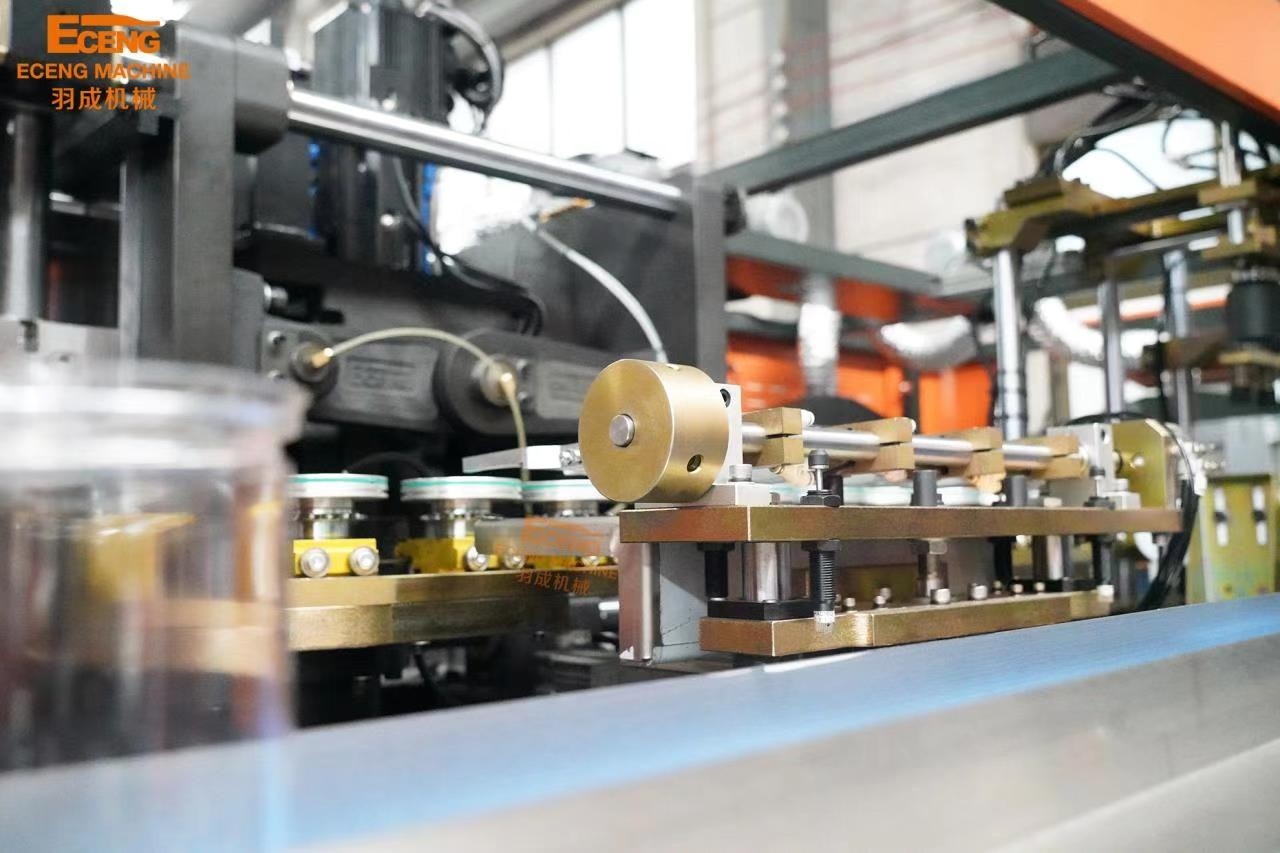

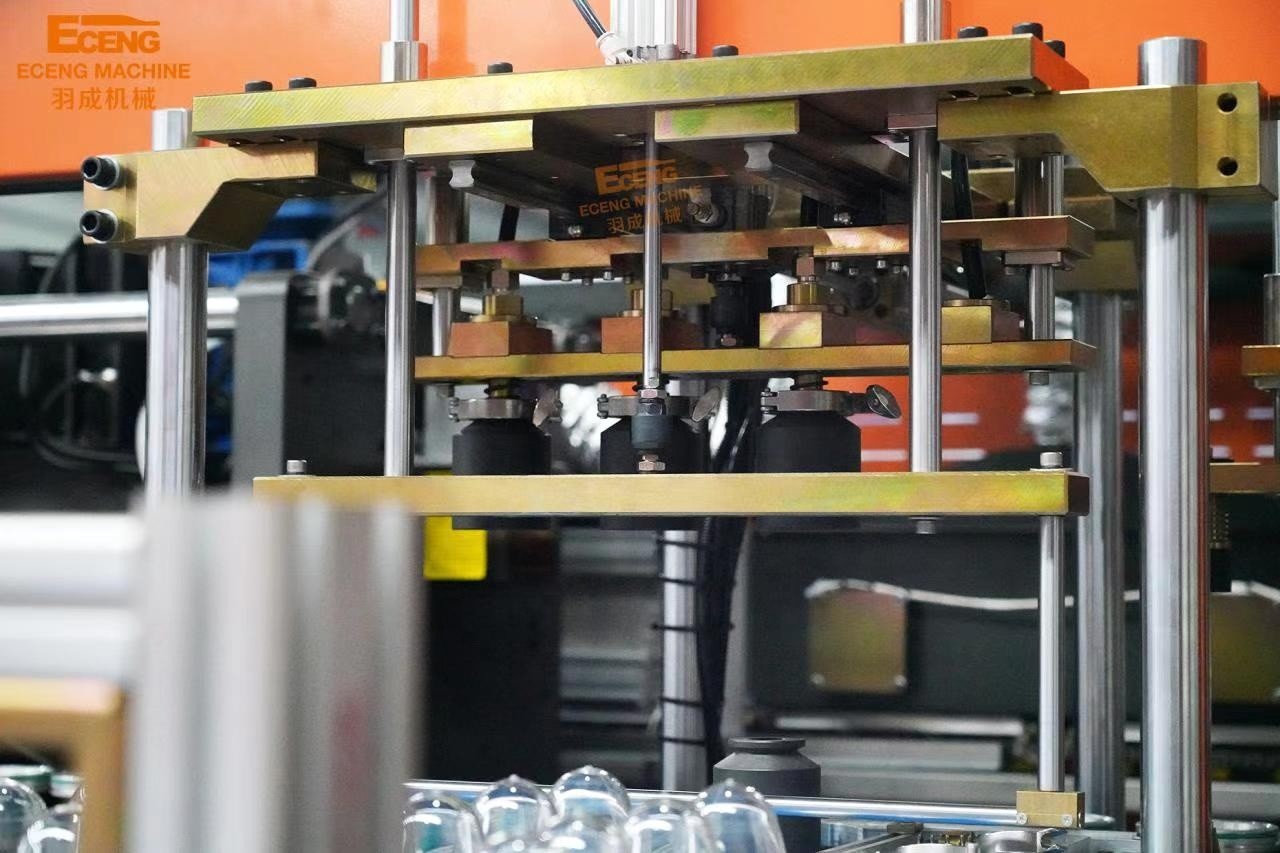

Product Photo

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 0


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 1

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 2


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 3

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 4

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 5

Working Process:


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 6

Sketch Map:


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 7


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 8

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 9

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 10


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 11

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 12

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 13


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 14

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 15

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 16
Exhibition


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 17

About Us


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 18

Product packaging


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 19
Packing
Conventional packaging: inside is wrapped with PE film outside is wooden box

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 20
Delivery Conventional packaging: inside is wrapped with PE film outside is wooden box

After sale service

1.Installation, debug We will arrange seasoned technician for debug and test production at the same time make the equipment reach the rated producing capacity of the line. 2.Training Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures. 3.the sample service ⅠWe can send you the video of the running machine. ⅡYou are welcome to come to visit our factory,and see the machine running. 4.We can design the machines according your requirements,at the same time we will give you our professional suggestion,as you know,we have been in this industry for 12 years. 5. Well-trained & experienced staff are to answer all your inquiries in English and Chinese 6. 12 Months guarantee and life-long technical support. 7. Your business relationship with us will be confidential to any third party. 8. Good after-sale service offered, please get back to us if you got any questions.


J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 21

J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 22
J4 Jar PET Blow Molding Machine Wide Neck Bottles With 2200 - 2400BPH Output 23
